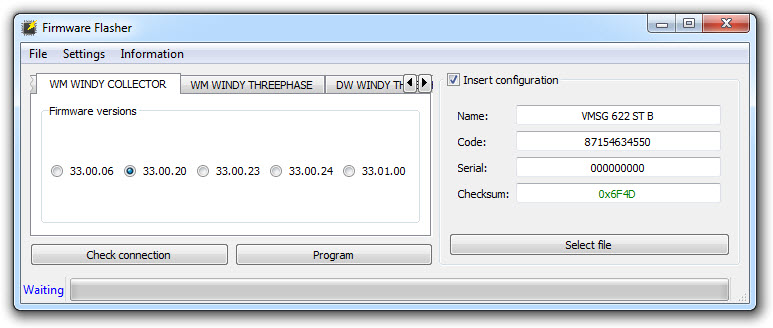

Program "Firmware Flasher"
with integrated database 24 SW versions
with integrated database 24 SW versions
The program is intended for the masters involved in the repair of washing and dishwashers where the modules are installed
Arcadia 2 - 3 and Windy
with microprocessors Renesas F52Z05AAFM, R5F51305ADFM, R5F51306ADFM, F51115ADFM ...
Arcadia 2 - 3 and Windy
with microprocessors Renesas F52Z05AAFM, R5F51305ADFM, R5F51306ADFM, F51115ADFM ...
+ Microprocessor firmware recovery (Flash) end config file in case of errors
F09 end F-12.
Currently Supported 24 versions SW:
Windy: 33.00.06 / 33.00.20 / 33.00.23 / 33.00.24 / 33.01.00
Windy 3 phase: 35.00.05 / 35.00.10 / 35.00.13 / 36.00.06 / 36.01.00
Windy dishwashers: 05.02.06 / 05.02.16 / 05.02.18 / 06.00.00
Arcadia - 3: 25.00.13 / 25.00.16 / 25.00.19
Arcadia - 3 3 phase: 11.01.00 / 11.01.13
Arcadia - 2: 01.01.23 / 01.01.24 / 01.01.30
Arcadia - 2 3 phase: 12.01.13 / 12.01.17
+ Possibility along with SW recovery to simultaneously select
and write the config (firmware file) without the need for a merlony service key.
+ Validation function of the selected config file
(checksum comparisons)
+ License for 2 devices (computer, laptop or tablet)
+ The program is not tied to the Internet and Internet servers.
+ Compatible with Windows Versions: 7, 8, 10, 11... ( 32 - 64 bit )
+ Detailed instructions (manual) with photos on installing and working
with the program.
Menu languages: English. Рус
F09 end F-12.
Currently Supported 24 versions SW:
Windy: 33.00.06 / 33.00.20 / 33.00.23 / 33.00.24 / 33.01.00
Windy 3 phase: 35.00.05 / 35.00.10 / 35.00.13 / 36.00.06 / 36.01.00
Windy dishwashers: 05.02.06 / 05.02.16 / 05.02.18 / 06.00.00
Arcadia - 3: 25.00.13 / 25.00.16 / 25.00.19
Arcadia - 3 3 phase: 11.01.00 / 11.01.13
Arcadia - 2: 01.01.23 / 01.01.24 / 01.01.30
Arcadia - 2 3 phase: 12.01.13 / 12.01.17
+ Possibility along with SW recovery to simultaneously select
and write the config (firmware file) without the need for a merlony service key.
+ Validation function of the selected config file
(checksum comparisons)
+ License for 2 devices (computer, laptop or tablet)
+ The program is not tied to the Internet and Internet servers.
+ Compatible with Windows Versions: 7, 8, 10, 11... ( 32 - 64 bit )
+ Detailed instructions (manual) with photos on installing and working
with the program.
Menu languages: English. Рус

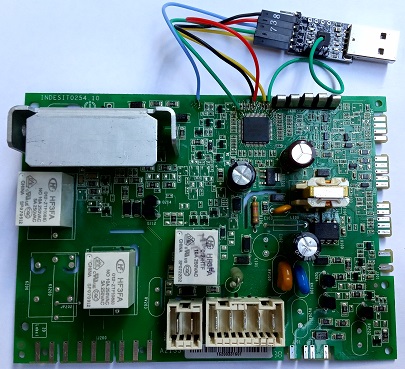

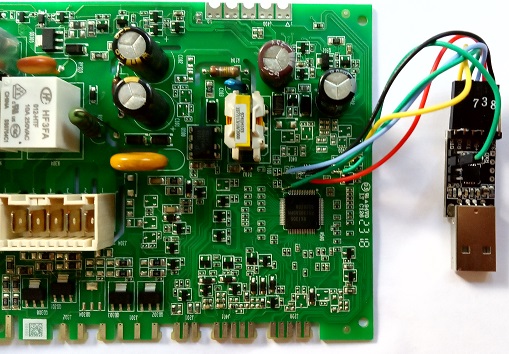

The main distinguishing ability of the program is working with modules without a
Merloni service key. All actions are done through a simple and cheap
USB-UART adapter CP2102, CP2104.... ( RX, TX, DTR, RTS, GND, VDD. )
Merloni service key. All actions are done through a simple and cheap
USB-UART adapter CP2102, CP2104.... ( RX, TX, DTR, RTS, GND, VDD. )
EVO-2 Service Tool
Arcadia Service Tool
Capabilities:
PayPal, Visa, MasterCard,
Money gram, Western Union,
Web Money, RIA, SWIFT,
Crypto-currency...
for approval other methods of payment please write to us. Our contact:
E-mail: [email protected]
After receiving the payment, we will send to you file with the program and detailed instructions to install, setup and continued use to the your e-mail
Payment options
For any questions please contact:
E-mail: [email protected]
Tel +38(067)269-23-27
arcadia 3 f12, windy f12, Arcadia3 f-12, Windy f-12, Arcadia 3 F-09, Windy F-09,
Price: 95 USD (93 euro)
